Rectangle Cast Iron Gully Cover 59*53*100 Gully Grate For Drain
Away Water
Product Specifications
Type – rectangular grating equipped with hinge, bolted locking
system, non-slip surface.
• Usage class - D400 minimum strength 40 tons according to EN
124-1993.
• Material – nodular graphite cast iron EN GJS 400-15 according to
ISO 1083 EN 1563 /A1 standard.
• Location area – access and circulation paths, stabilized
shoulders and parking spaces for road vehicles, heavy traffic.
• Applications – distribution channels, drainage networks, pumping
and water treatment stations.
Product Parameters
| Material | Ductile iron |
| Unit weight | 4kg to 125kg |
| Standard | EN124 |
| Paint | Black bituminous paint |
| Quality | It conforms to standard EN124, clearly casted and free from sand
holes, blow holes, distortion or any other defects. |
| Packing | Wooden or steel pallet |
| Certificates | ISO 9001.2008 |
| Our manufacturing ranges | A15, B125, C250, D400, E600 and F900. |
| OEM | OEM is welcome,Logo engraving is available |

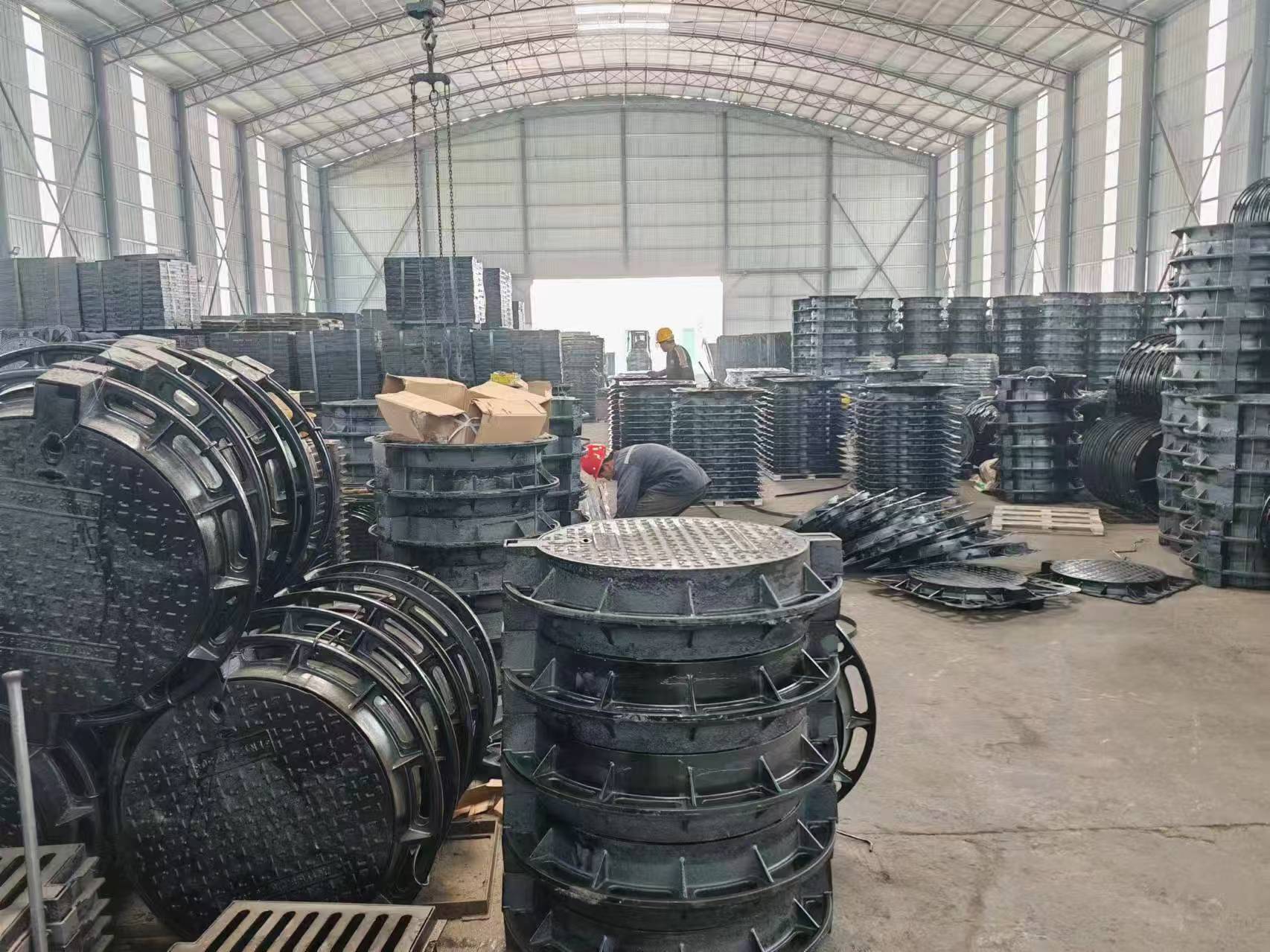

Who we are
SND has been producing and selling metal goods for about 20
years.By using manufacturing techniques including sand casting,
lost wax casting, lost foam casting, and precision machining, the
company has been supplying goods made of materials like cast iron,
steel, stainless steel, aluminum, etc. Additionally offered are
surface finishing and assembly services.
Our company has successfully created products in a variety of
industries, including automotive, rail transportation, agricultural
machinery, chemical, energy, electricity, water, air compressor,
and construction, thanks to our consistent efforts over the past
few years.
Our factories' ISO9001-accredited quality control systems guarantee
a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation,
tensile/yield strength, and other inspections are carried out as
part of routine production procedures.
Manufacturing Process
Material Preparation: High-quality pig iron and scrap iron are
melted together, with magnesium added to create a ductile iron
alloy.
Casting: The molten iron is poured into molds to form the basic
shape of the manhole cover. Sand casting is a common method due to
its precision and efficiency.
Heat Treatment: The cast pieces are treated with heat to improve
strength and flexibility.
Surface Coating: Anti-corrosive coatings are applied to ensure
longevity in various environments.
Quality Control: Each cover undergoes rigorous testing for
load-bearing capacity, tensile strength, and dimensional accuracy
