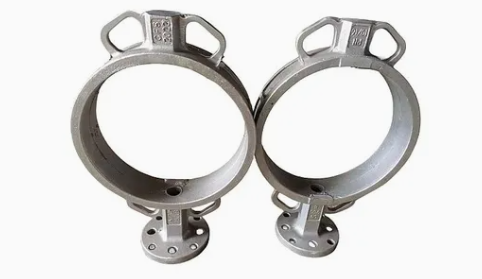

ASTM Standard Metal Castings Wcb Butterfly Valve Body And Parts
Material:
| Material | Characteristics | Applications |
|---|
| Gray Cast Iron | - Cost-effective<br>- Good machinability<br>- Moderate
strength | - (Water treatment), (Ventilation systems) |
| Ductile Cast Iron | - Higher strength and toughness<br>- Better corrosion
resistance | - Municipal pipelines, Low-to-moderate pressure systems |
| Cast Steel | - High strength and toughness<br>- Suitable for high-pressure
conditions | - Oil and gas pipelines, Power plants |
| Stainless Steel | - Excellent corrosion and temperature resistance<br>- High
durability | - Chemical processing, Food and beverage, Marine environments |
| Aluminum Alloy | - Lightweight<br>- Corrosion resistance<br>- Good
thermal conductivity | - Aerospace, Lightweight industrial applications |
Manufacturing process of butterfly valve castings:
Design and mold making:
Molds are made according to the design requirements of butterfly
valves, including molds for valve body and valve plate.
Metal smelting:
The selected material (such as cast iron, stainless steel, etc.) is
heated and melted, and the chemical composition is adjusted to
ensure performance requirements.
Casting molding:
The molten metal is poured into the mold, filled into the mold
cavity, and then cooled and solidified to form the initial shape of
the butterfly valve casting.
Cleaning and polishing:
Remove the gate and flash, and clean and polish the surface of the
casting.
Heat treatment:
(Optional) Improve the mechanical properties and corrosion
resistance of the casting through processes such as annealing and
quenching.
Machining:
Precision machining of castings, such as machining valve sealing
surfaces, threaded holes and other connection parts.
Quality inspection:
Inspect the size, surface quality, mechanical properties and
internal defects (such as pores and shrinkage holes) of the
casting.
FAQ
Could you please provide drawings?
If you have samples, you can provide them to us. We can test your
samples through the equipmentand then draw the drawings.
Could you provide samples?
We can provide a small number of free samples, and customers bear
the freight
Could you please provide the test report?
All our products are tested before delivery. lf the buyer needs the
test report, we can provide it. including the raw materials used in
this product, these can be detected.
Who we are
SND FOUNDRY have been specializing in the production and sales of
metal casting products nearly 20 years.
The company integrates sand casting, lost wax casting, lost foam
casting, machining, heat treatment, and surface treatment. It
specializes in providing precision castings of various materials
such as cast iron, cast steel, stainless steel, alloy steel,
wear-resistant and heat-resistant steel, with an annual output
20,000 tons of castings.
After years of continuous efforts, SND has successfully developed
casting products for various industries such as automobiles, rail
transit, mining machinery, chemicals, energy, electric power, water
conservancy, and hardware construction. At present, our company's
products are mainly supplied to Weichai, ShanQi Automobile, Beijing
Valve, Minmetals Group, Handan Steel Group and other companies. The
products have exported to Russia, Spain, Germany and other overseas
countries.
SND has fully passed the ISO9001 quality management system
certification. During the production process, it implements a
number of strict detailed standards and conducts full-process
quality control. Our company has well-equipped chemical
laboratories and physical performance laboratories. A complete set
of testing equipment such as Direct Reading Spectrometer,
Metallographic Microscope, Hardness Tester, Universal Material
Testing Machine and Pressure test machine can be used to
effectively control chemical composition and ensure mechanical
performance.
